Choosing among FPV flight controllers comes down to a practical fork: do you want a controller focused on flight control, or a combined FC-and-ESC assembly? The JHEMCU GF30F722-ICM and F405 V4 take different approaches. Here's how to match each one to a racing, freestyle, or multicopter build without treating shared Betaflight support as a meaningful difference.
Quick verdict
The JHEMCU GF30F722-ICM F7 Flight Controller is the direct fit when dual BEC outputs, named receiver support, and a flight-controller format are the priorities. The F405 V4 FC and ESC Stack is the better match when the build calls for an FC and 4-in-1 ESC together. The listed prices are $55.39 and $136.99, a spread of $81.60 that sits alongside this format difference. Both mention Betaflight support and USB Type-C, so neither detail should decide the purchase alone.
At a glance
| Product | Listed price | Listed battery input | Hardware format |
|---|---|---|---|
| JHEMCU GF30F722-ICM F7 Flight Controller | $55.39 | 3-8S LiPo | F7 flight controller |
| F405 V4 FC and ESC Stack | $136.99 | 3-6S LiPo | FC with 60A 4-in-1 ESC |
Where each product wins
JHEMCU wins for controller and peripheral flexibility
The JHEMCU is the direct match if the build needs its named dual 5V and 10V BEC arrangement or support for receiver families such as ELRS, CRSF, SBUS, IBUS, and DSM2/DSMX. Its description also calls out an integrated OSD and barometer. The limitation is format: the JHEMCU title presents a flight controller, while the F405 V4 explicitly presents an FC-and-ESC stack. Buyers specifically assembling around combined ESC hardware should focus on the latter.
F405 V4 wins for an integrated stack
The F405 V4 fits a build where the ESC hardware is part of the purchase decision. Its listed BLS 60A x4 ESC, DSHOT300/600 support, TVS protection, and 30x30 stack format make that role explicit. The trade-off is that the combined assembly may be more hardware than a build seeking only a flight controller. Its listed specification also uses a 3-6S input range, so battery-range requirements deserve attention before choosing the stack.
Product notes

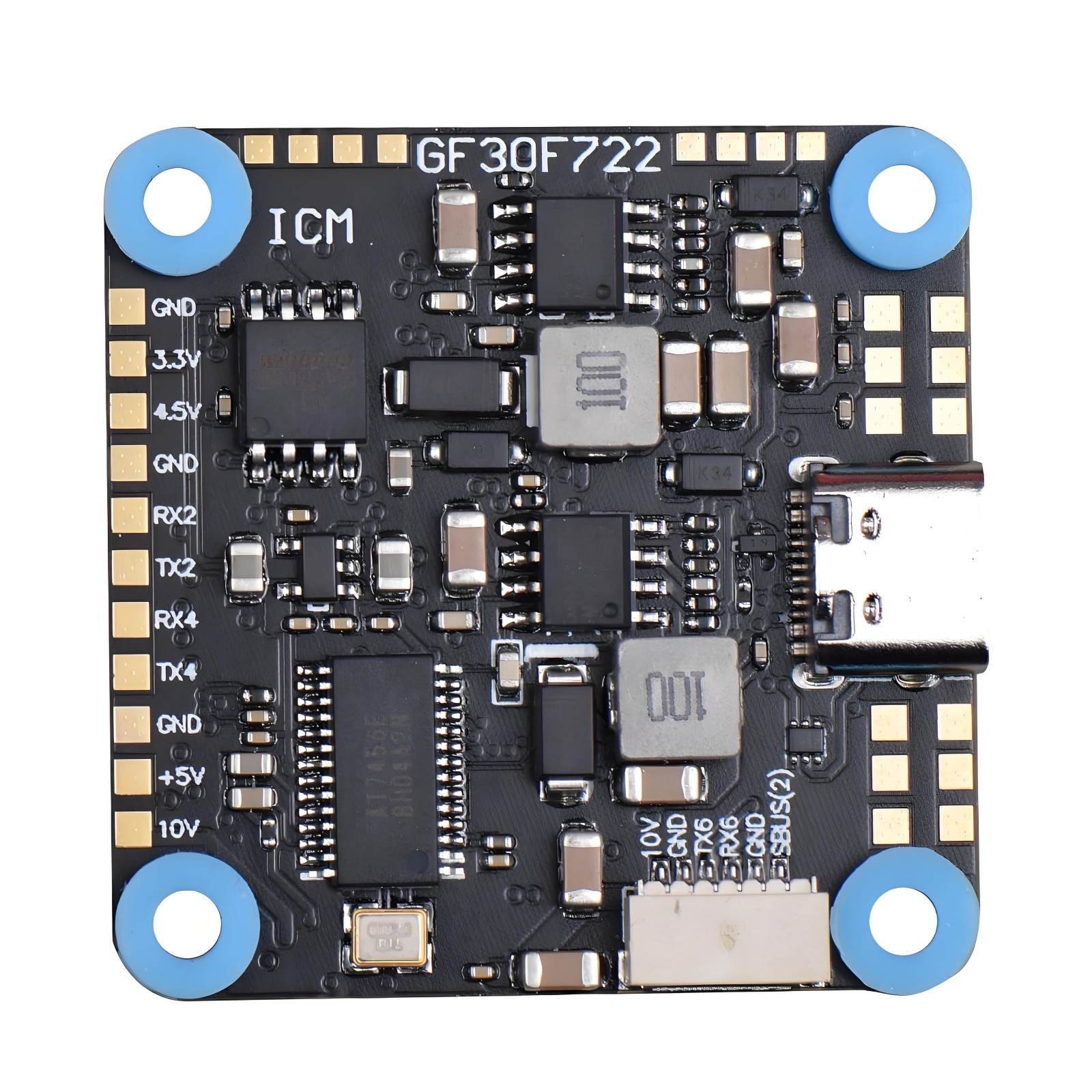

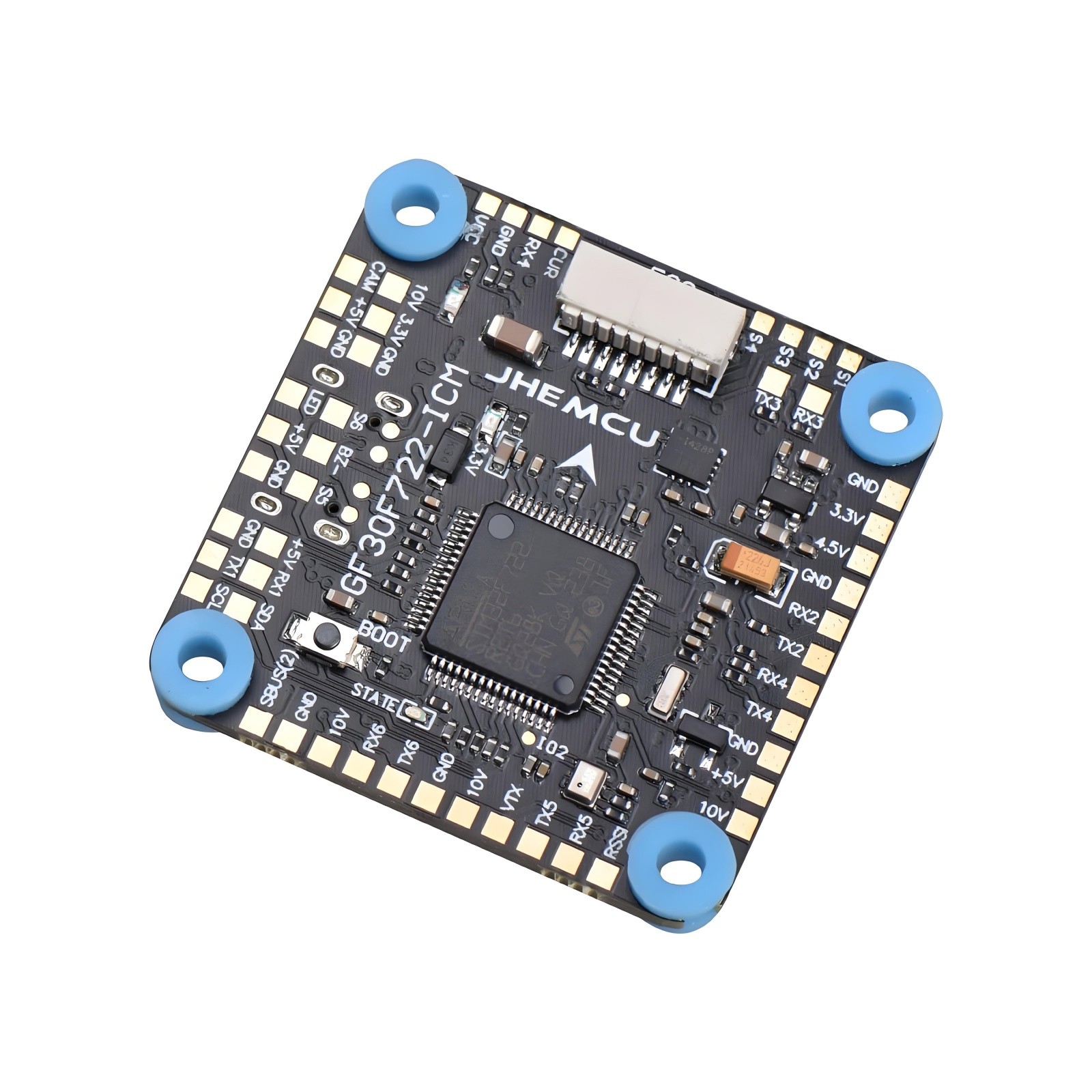

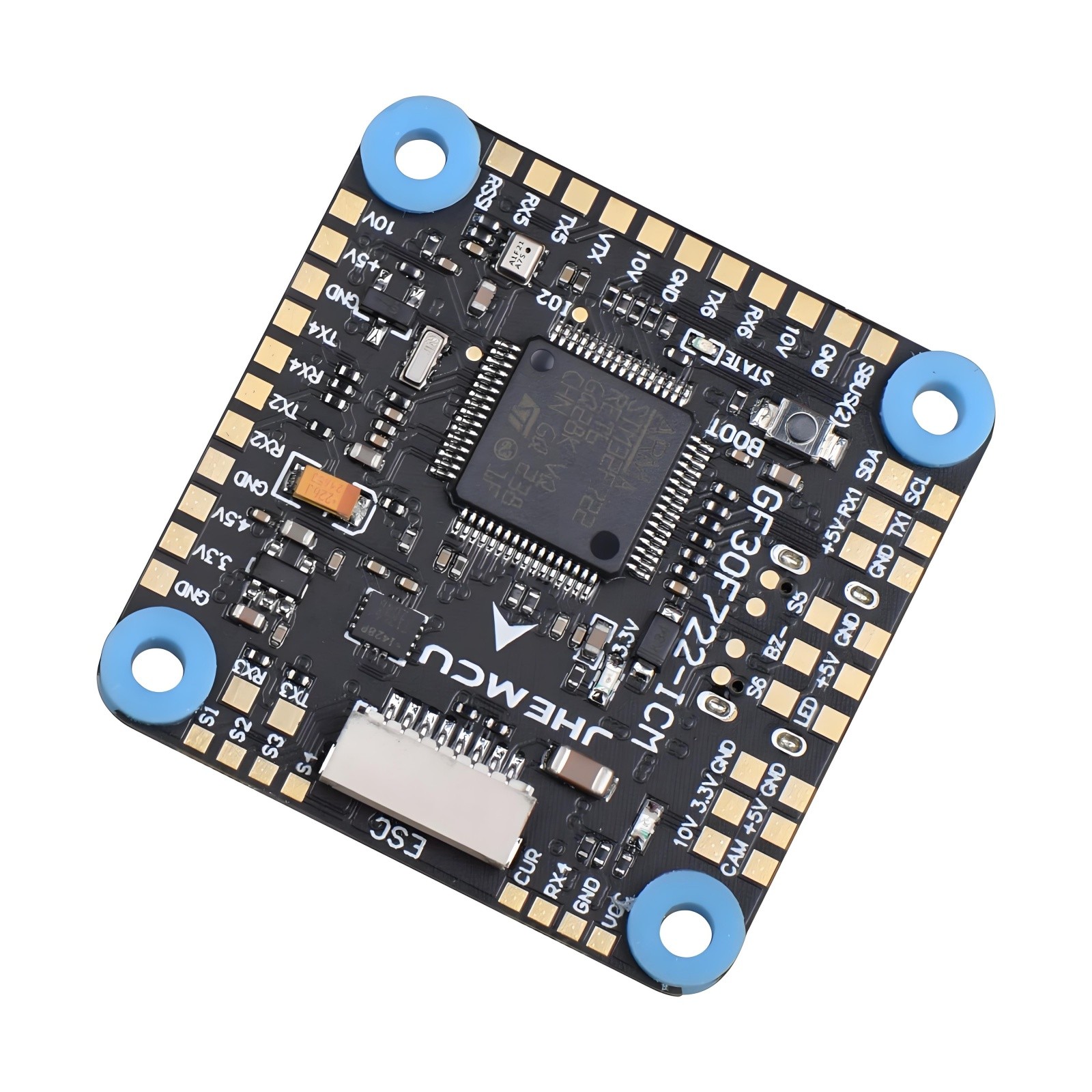

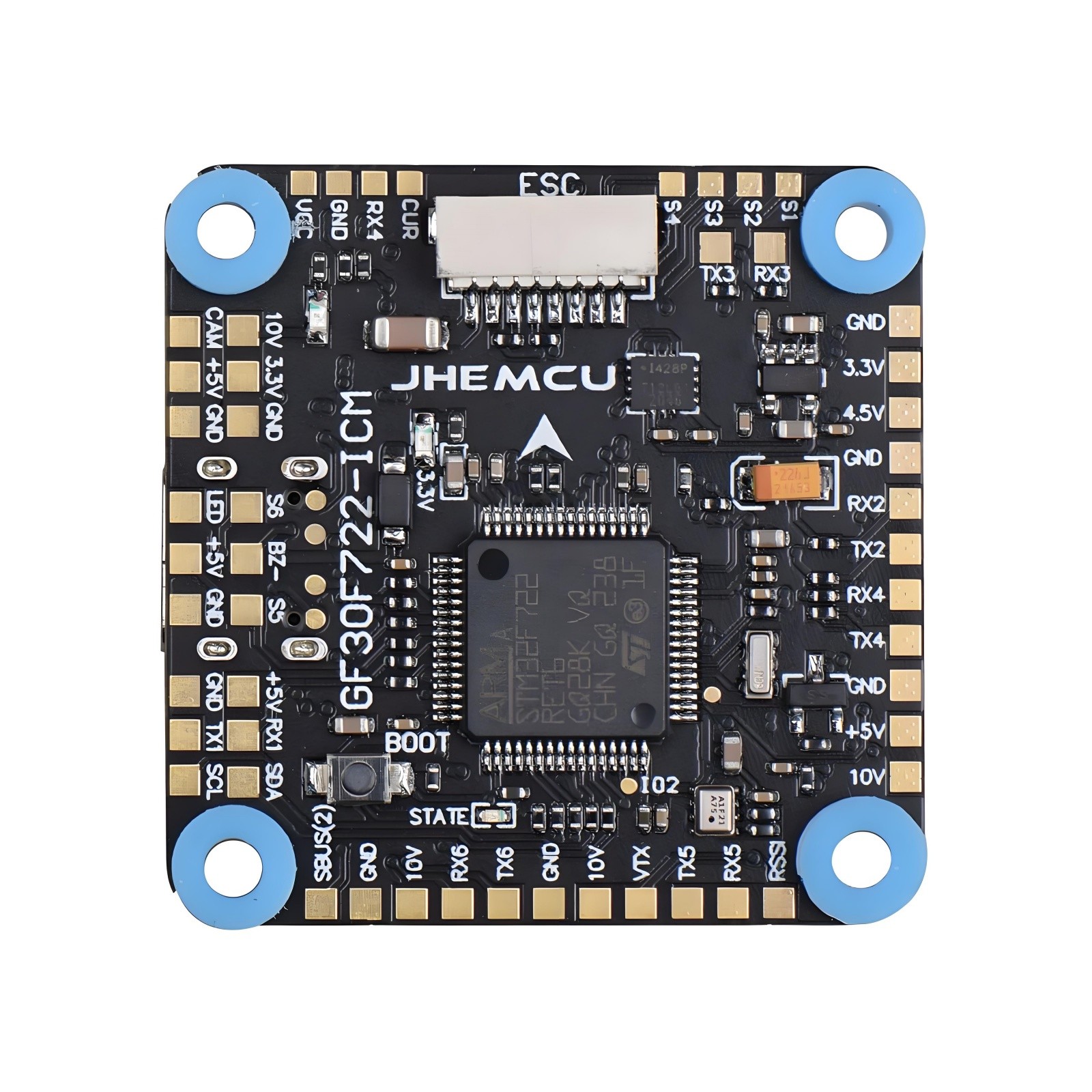

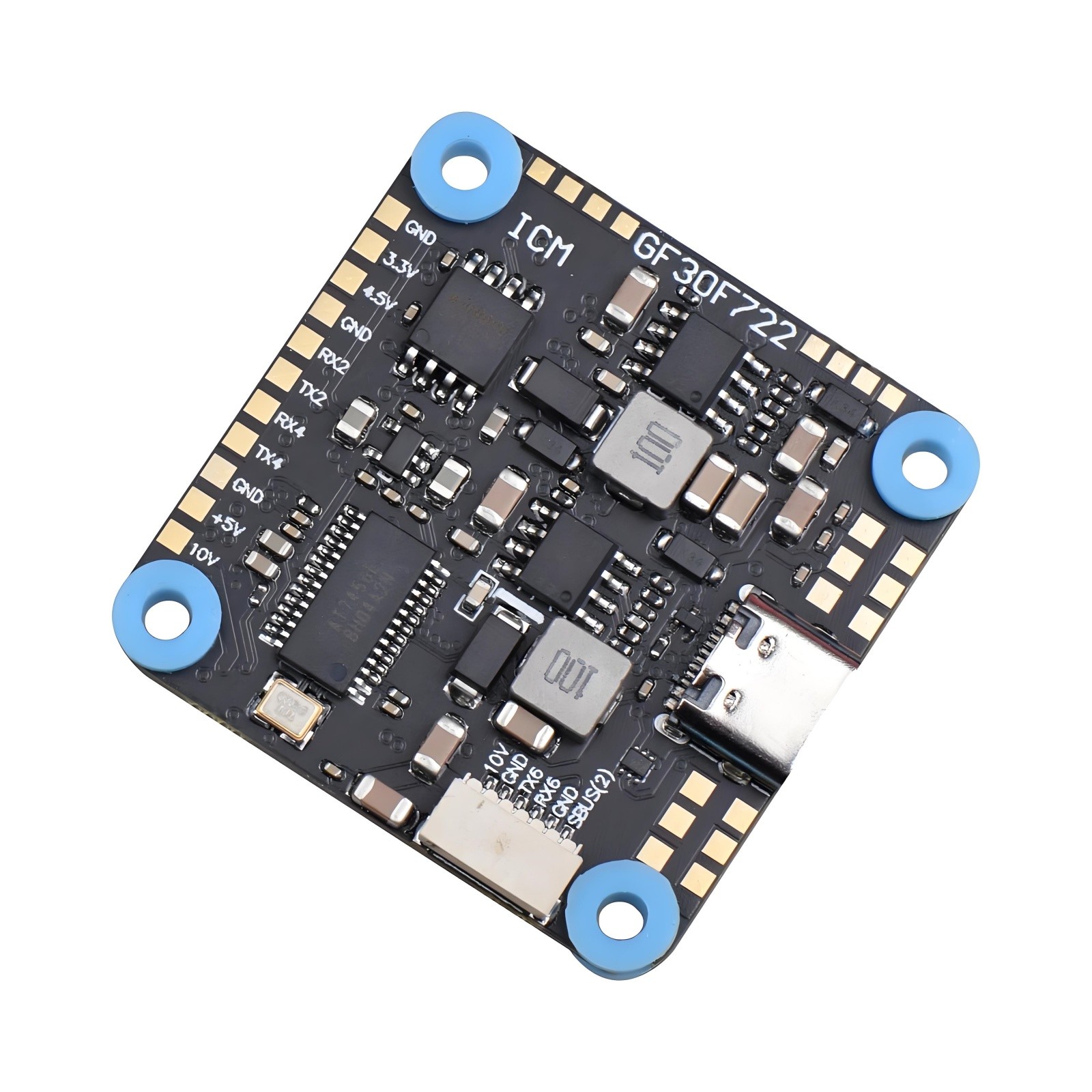

JHEMCU GF30F722-ICM F7 Flight Controller
The JHEMCU GF30F722-ICM is a natural match for FPV racing and freestyle builds because its description specifies the STM32F722RET6 processor, ICM-42688-P gyro/accelerometer, and dual 5V/10V BEC outputs. Receiver support spans ELRS, CRSF, SBUS, IBUS, and DSM2/DSMX; the board also lists AT7456E OSD, a barometer, USB Type-C, and 16MB blackbox. That is a concrete set of named controller and peripheral features. The limitation is format: the title centers on the FC itself, whereas the rival is explicitly an FC-and-ESC stack. Choose JHEMCU for the listed receiver and BEC details; skip it when a bundled ESC is the deciding requirement.
F405 V4 BLS 60A 30x30 FC and ESC Stack
The F405 V4 BLS 60A 30x30 FC and ESC Stack earns its place when the build brief calls for combined control and motor-drive hardware. Its specifications name an F405 V4 FC, ICM42688P gyro, four BLS 60A ESC channels, DSHOT300/600, TVS protection, and a microSD blackbox slot up to 4GB. It also lists 5V, 9V, and 3.3V outputs plus a 30.5 x 30.5mm mount with 4mm holes. The limitation is the stated 3-6S LiPo input, a narrower listed range than JHEMCU's 3-8S. At $136.99, it is $81.60 above JHEMCU, so select it for the integrated stack hardware-not simply because the number is larger.
Final choice by use case
- Choose JHEMCU GF30F722-ICM for an FPV racing or freestyle build where the named receiver families, dual BECs, OSD, or 3-8S input fit the plan.
- Choose F405 V4 BLS 60A 30x30 FC and ESC Stack for a quadcopter or multicopter build that specifically calls for a 30x30 FC-and-ESC assembly and its listed 60A 4-in-1 ESC.
The deciding question is hardware format, not the shared Betaflight or USB Type-C support: choose the JHEMCU for its controller-focused feature set, or the F405 V4 when an integrated ESC is central to the build.
