Choosing an FPV flight controller is less about collecting features than matching the electrical range, mounting pattern, and build format to your quad. The key question is whether a combined FC-and-ESC stack is the right fit for your project-and whether its specific layout works with the rest of your hardware.
F405 V4 60A 4-in-1 ESC Stack for SpeedyBee
Quick verdict

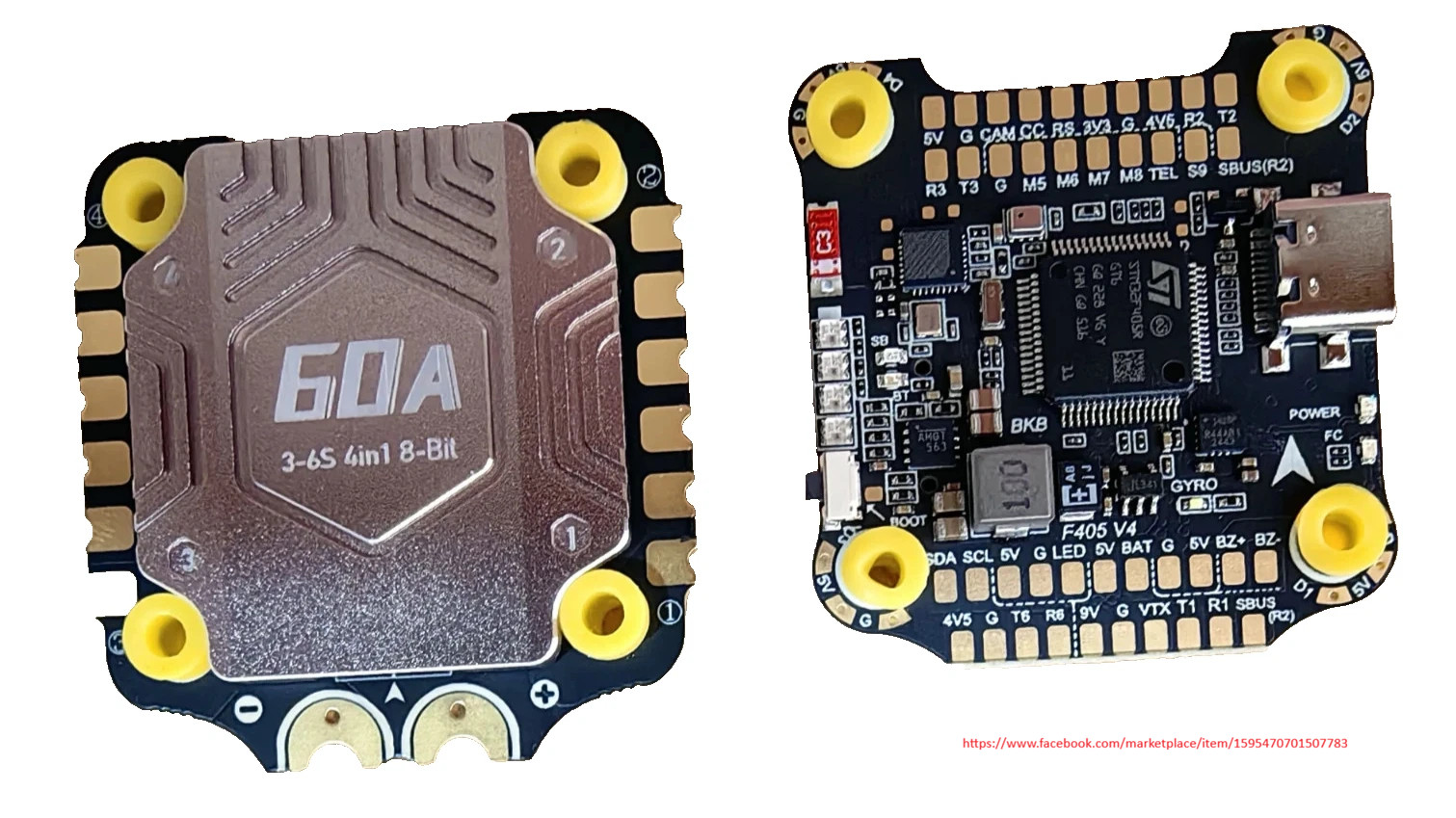

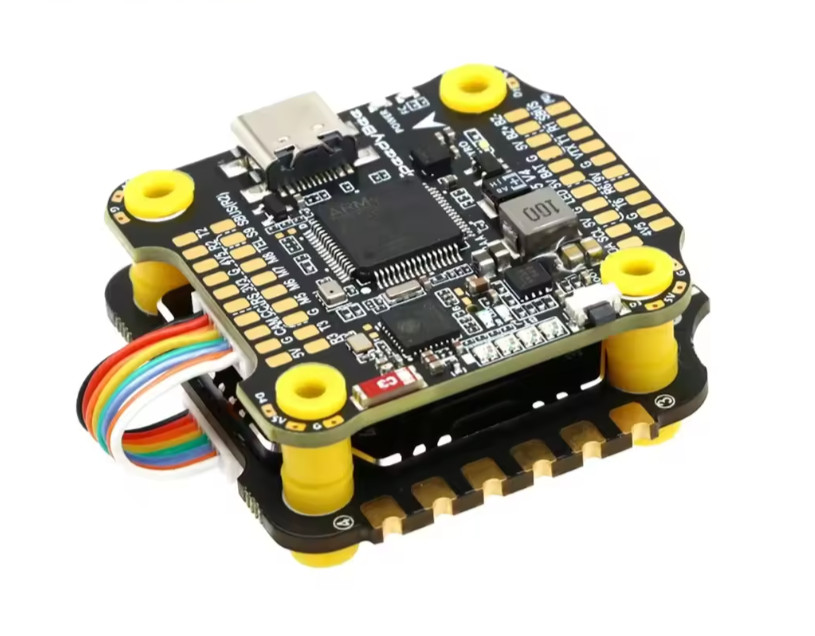

The F405 V4 stack is a focused choice for quadcopter and multicopter builds that use a 3-6S LiPo setup and a 30.5 x 30.5 mm mounting pattern with 4 mm holes. It combines an F405 flight controller with four 60A BLS ESC channels in a 30x30 stack format, giving shoppers one integrated component to plan around. At USD 136.99, the purchase makes the most sense when those specifications match the build rather than when a different board layout or input range is needed.
Who it suits
This stack suits builders who want Betaflight or iNav support, a built-in 4-in-1 ESC arrangement, and a controller with Blackbox recording hardware. The ICM42688P gyro and USB Type-C connection are useful listed features for a setup centered on those ecosystems. It also fits projects where the 30x30 stack format and stated 3-6S input range are already part of the design.
The main limitation is fit: the 30.5 mm square mounting layout and 4 mm holes place a clear constraint on the frame and hardware combination. A build designed around another physical format will not align with the stated dimensions, so this is a specification-led purchase rather than a universal FC choice.
What stands out

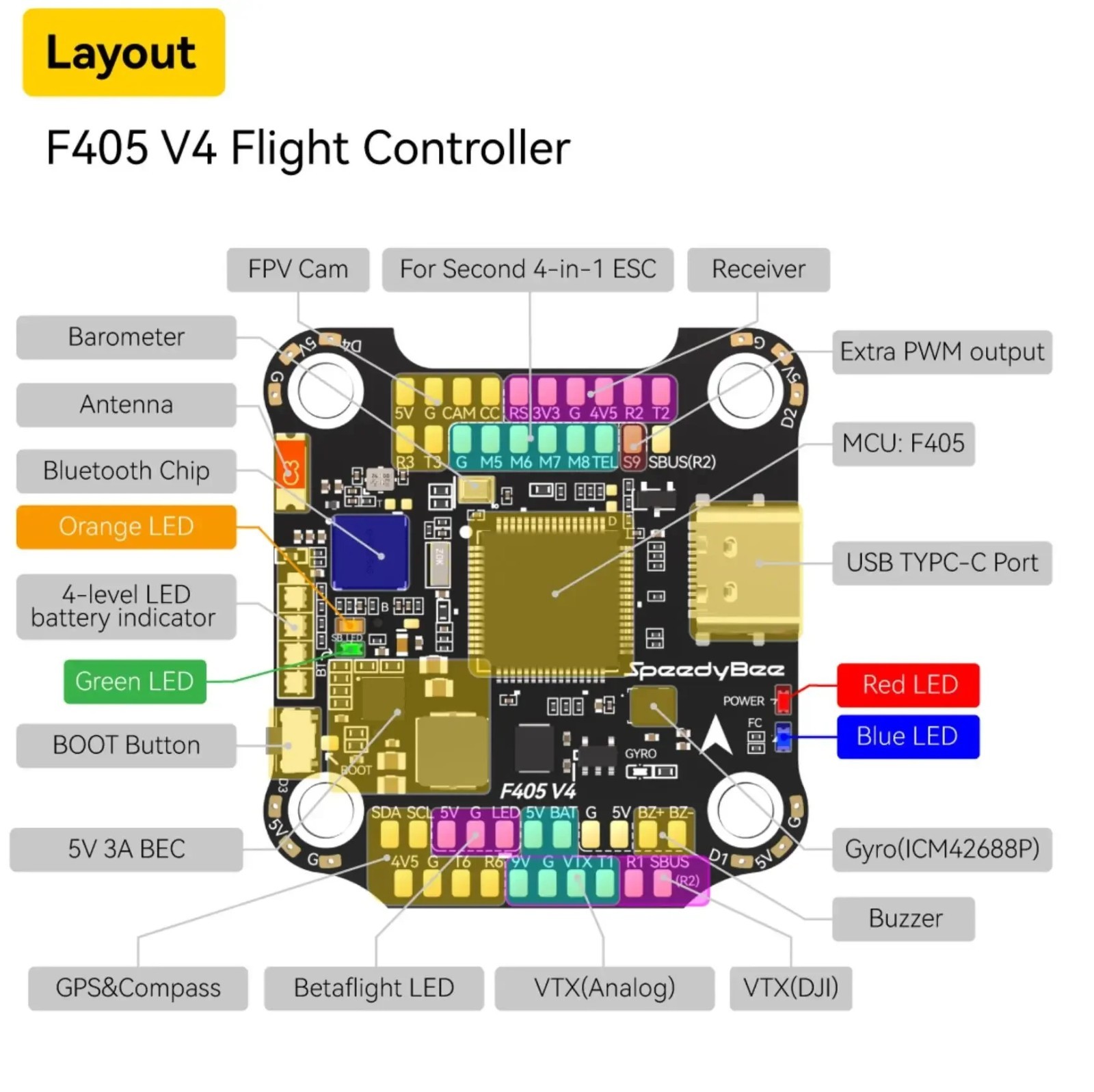

The controller includes nine groups of 5V output at 3A total, two groups of 9V output at 3A total, and 3.3V output up to 500mA. Those connections give the stack several stated power-output options without requiring a separate controller board in the package.
On the ESC side, the specification lists DSHOT300 and DSHOT600 support, TVS protection, and an 80A burst rating for 10 seconds alongside the 60A x4 rating. A microSD slot supports Blackbox storage up to 4GB, while the stack dimensions are 45.6 x 44 x 8 mm. These are concrete planning details for builders checking both wiring and available frame space.
Meaningful trade-offs
The V4 version has been discontinued by SpeedyBee. The hardware is described as coming from the original manufacturing partner and as identifying as "SpeedyBee F405" when connected to Betaflight, but the discontinued V4 status remains relevant for shoppers who specifically want that named version.
There is also no reason to treat the ESC's numeric ratings as a promise of performance beyond their stated use. The practical decision is whether the 60A x4 configuration, DSHOT support, and power-output arrangement meet the build's requirements.
Bottom line
The F405 V4 60A stack is a sensible pick when the listed 3-6S range, 30x30 format, Betaflight/iNav support, and integrated 4-in-1 ESC all line up with your quad. Its concrete limitation is the fixed mounting layout, while the discontinued V4 status may matter to shoppers seeking a specific SpeedyBee release. For a matching build, it offers a clearly defined FC-and-ESC package at USD 136.99.
