Choosing an FFC/FPC adapter board for computers peripherals comes down to matching the connector count and named pin arrangement to the cable connection you need. Three choices center on 4-pin connections with different bent-pin or straight-needle layouts, while one board moves to a 30-pin double-row male header-strip format. The listed prices are close, so configuration is the main decision point.
Quick take
- Choose a 4-pin board when the connection calls for a 4-pin FFC/FPC arrangement.
- Select the bent pins flip-down, bent pins pull-down, or straight needles pull-down version according to the orientation named for your setup.
- Move to the 30-pin board when a 30-pin double-row male pin header strip adapter is the required format.
All four are listed as new uxcell cable connectors. Each carries the same California Prop 65 warning.
Listed price comparison
| Adapter board | Listed price | Price bar | Configuration cue |
|---|---|---|---|
| 4Pin 1.0 to 2.54 mm Double Row of Bent Pins Flip-down FFC FPC Adapter Board | USD 14.84 | 4 pins, bent pins, flip-down | |
| 4Pin 1.0 to 2.54 mm Double Row of Bent Pins Pull-down FFC FPC Adapter Board | USD 14.84 | 4 pins, bent pins, pull-down | |
| 4Pin 1.0 to 2.54 mm Double Row Straight Needles Pull-down FFC FPC Adapter Board | USD 14.84 | 4 pins, straight needles, pull-down | |
| FFC FPC Connector Board 30 Pins Double Row Male Pin Header Strip Adapter | USD 14.22 | 30 pins, double row, male pin header strip |
Decision matrix
- Four pins with a bent-pin flip-down arrangement: choose the 4Pin 1.0 to 2.54 mm Double Row of Bent Pins Flip-down FFC FPC Adapter Board.
- Four pins with a bent-pin pull-down arrangement: choose the 4Pin 1.0 to 2.54 mm Double Row of Bent Pins Pull-down FFC FPC Adapter Board.
- Four pins with straight needles and a pull-down arrangement: choose the 4Pin 1.0 to 2.54 mm Double Row Straight Needles Pull-down FFC FPC Adapter Board.
- Thirty pins with a double-sided board and single flat-cable socket: choose the FFC FPC Connector Board 30 Pins Double Row Male Pin Header Strip Adapter.
Product notes
4Pin 1.0 to 2.54 mm Double Row of Bent Pins Flip-down FFC FPC Adapter Board
Choose the flip-down board when the requirement is specifically a four-pin FFC/FPC connection with the named double row of bent pins. Its stated overall size is 33 x 17.5 mm, with a 1 mm FPC socket-side pitch and 2.54 mm DIP pitch. The listed price is USD 14.84. The key limitation is its 4-pin count, which places it in a different connector-count category from the 30-pin header-strip adapter. Its title also makes the pin arrangement clear: bent pins in a flip-down format rather than straight needles or the pull-down wording used by the other 4-pin selections.
4Pin 1.0 to 2.54 mm Double Row of Bent Pins Pull-down FFC FPC Adapter Board
The pull-down bent-pin version fits a four-pin build where that exact named arrangement is the deciding detail. It is listed at 32 x 17.5 mm and uses a 1 mm FPC socket-side pitch plus a 2.54 mm DIP pitch. At USD 14.84, its price matches the other two 4-pin boards. Its limitation is also its defining feature: the title specifies bent pins and pull-down orientation, not the flip-down terminology of the first board or the straight-needle terminology of the third. It remains a 4-pin cable connector rather than the 30-pin double-row male header-strip format.
4Pin 1.0 to 2.54 mm Double Row Straight Needles Pull-down FFC FPC Adapter Board
Pick the straight-needles pull-down board when four pins are required and the straight-needle description is the relevant layout cue. The board's listed dimensions are 26 x 17.5 mm, and the description cites a 1 mm socket-side pitch with a 2.54 mm DIP pitch. Its listed price is USD 14.84. The tradeoff is that the board stays within the 4-pin format, so it does not serve the same pin-count need as the 30-pin adapter. It also differs in title wording from the two bent-pin alternatives, making it the clearest choice among the four for a straight-needles pull-down designation.

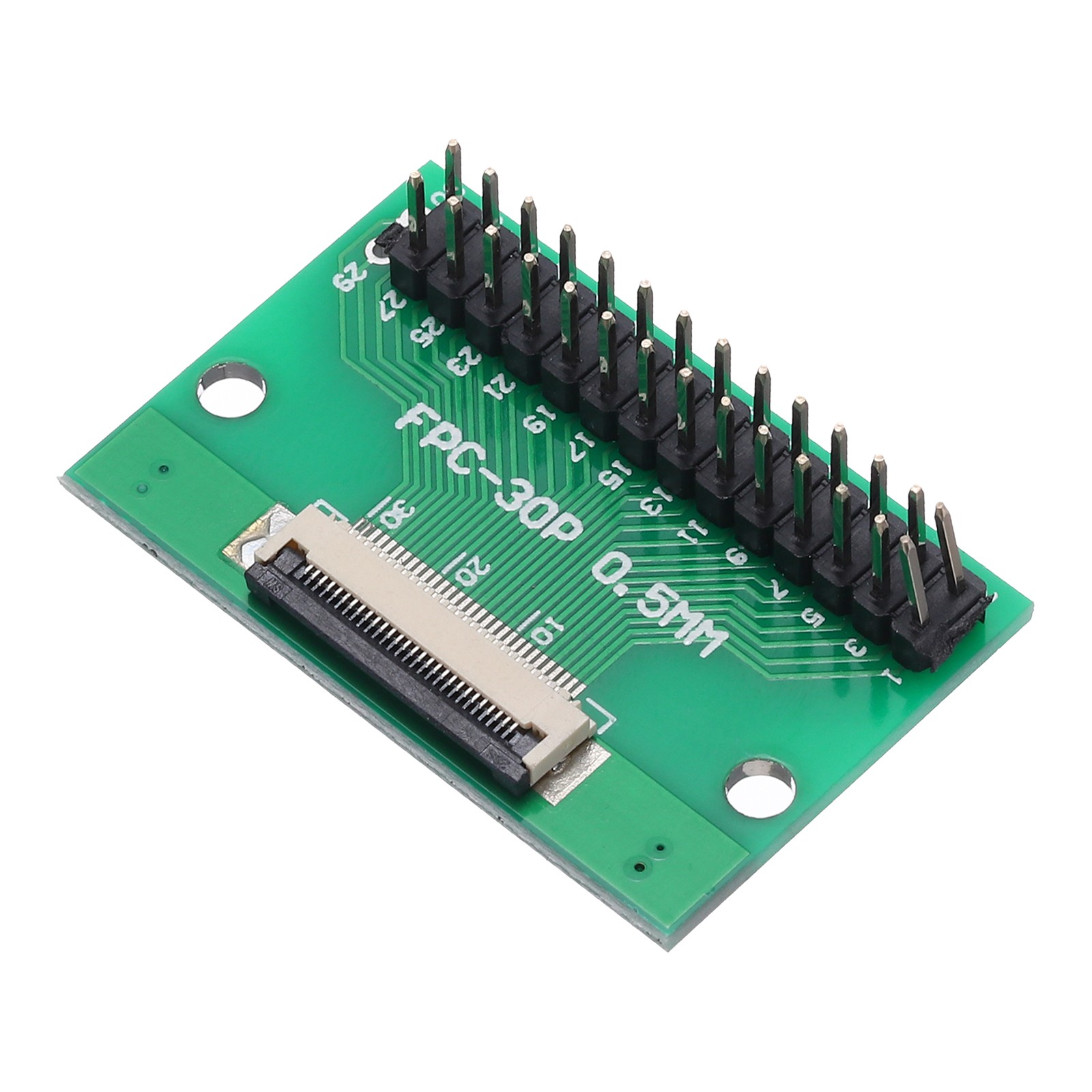

FFC FPC Connector Board 30 Pins Double Row Male Pin Header Strip Adapter
For a higher pin-count connection, the FFC FPC Connector Board 30 Pins Double Row Male Pin Header Strip Adapter is the direct match in this group. It has 30 pins, a double-sided board design, and a single flat-cable socket, with a listed size of 26 x 40 mm. The listed price is USD 14.22. Its limitation is straightforward: the 30-pin male pin header strip format is not one of the 4-pin bent-pin or straight-needles arrangements. Choose it for the stated 30-pin configuration rather than as an alternative to a four-pin connection.
Final recommendation by use case
Choose the flip-down model for a named 4-pin bent-pin flip-down arrangement, the pull-down bent-pin model for its corresponding 4-pin orientation, and the straight-needles version when that designation is needed. Select the 30-pin double-row male pin header strip adapter when pin count is the deciding factor and the connection calls for its double-sided, single-flat-cable-socket board format.
