Selecting an FFC/FPC connector board is less about picking the lowest listed price and more about matching the board's pin count and header arrangement to the connection you need. This group spans 4, 10, 24, and 30 pins, with male, female, and right-angle header wording separating the choices. All four are listed as new cable connectors and use a double-sided board with a single flat-cable socket.
Quick take
Start with pin count. The FFC FPC Connector Board 30 Pins Double Row Male Pin Header Strip Adapter is the listed 30-pin male-header choice. The 2pcs FFC FPC Connector Board 24 Pin Double Row Female Header Strip Adapter is the 24-pin female-header option. For right-angle arrangements, choose between the 10-pin Zaplyte board and the 4-pin uxcell board.
The listed-price range is USD 13.37 to USD 21.06, a USD 7.69 spread. That makes the header type and pin requirement more decisive than price alone: the two right-angle boards sit close together in listed price but serve distinctly different pin counts.
Listed price comparison
| Connector board | Header wording | Listed price | Price position |
|---|---|---|---|
| FFC FPC Connector Board 30 Pins Double Row Male Pin Header Strip Adapter | Male pin header strip, 30 pins | USD 14.22 | |
| 2pcs FFC FPC Connector Board 24 Pin Double Row Female Header Strip Adapter | Female header strip, 24 pins | USD 21.06 | |
| 2pcs FFC FPC Connector Board 10 Pin Double Row Right Angle Pin Header Adapter | Right-angle pin header, 10 pins | USD 13.37 | |
| 2 x FFC FPC Connector Board 4 Pin Double Row Right Angle Pin Header Adapter | Right-angle pin header, 4 pins | USD 13.65 |
Decision matrix
- Need a 30-pin board with male pin-header wording: choose the uxcell 30-pin adapter.
- Need a 24-pin board with female header-strip wording: choose the Zaplyte 24-pin two-piece adapter.
- Need a right-angle board with 10 pins: choose the Zaplyte 10-pin two-piece adapter.
- Need a right-angle board with 4 pins: choose the uxcell 4-pin two-piece adapter.
- Looking only at the lowest listed price: the 10-pin right-angle Zaplyte option is the starting point at USD 13.37.
Across the group, the descriptions specify a 0.5 mm FPC socket-side pitch, 1.0 mm FPC back-side pitch, and 2.54 mm DIP pitch. Those shared specifications do not distinguish one board from another; pin count and header wording do.
Product notes
FFC FPC Connector Board 30 Pins Double Row Male Pin Header Strip Adapter
Choose this uxcell board when a 30-pin arrangement and double-row male pin header strip are the defining requirements. Its description identifies a double-sided PCB support board with a single flat-cable socket, 0.5 mm FPC socket-side pitch, 1.0 mm FPC back-side pitch, and 2.54 mm DIP pitch. The stated overall size is 26 x 40 mm. At USD 14.22, it lands between the lower-priced right-angle choices and the 24-pin female-header option. The limitation is straightforward: its 30-pin, male-header format is specific, so it is not the listed choice for a 24-pin female connection or either right-angle header arrangement.

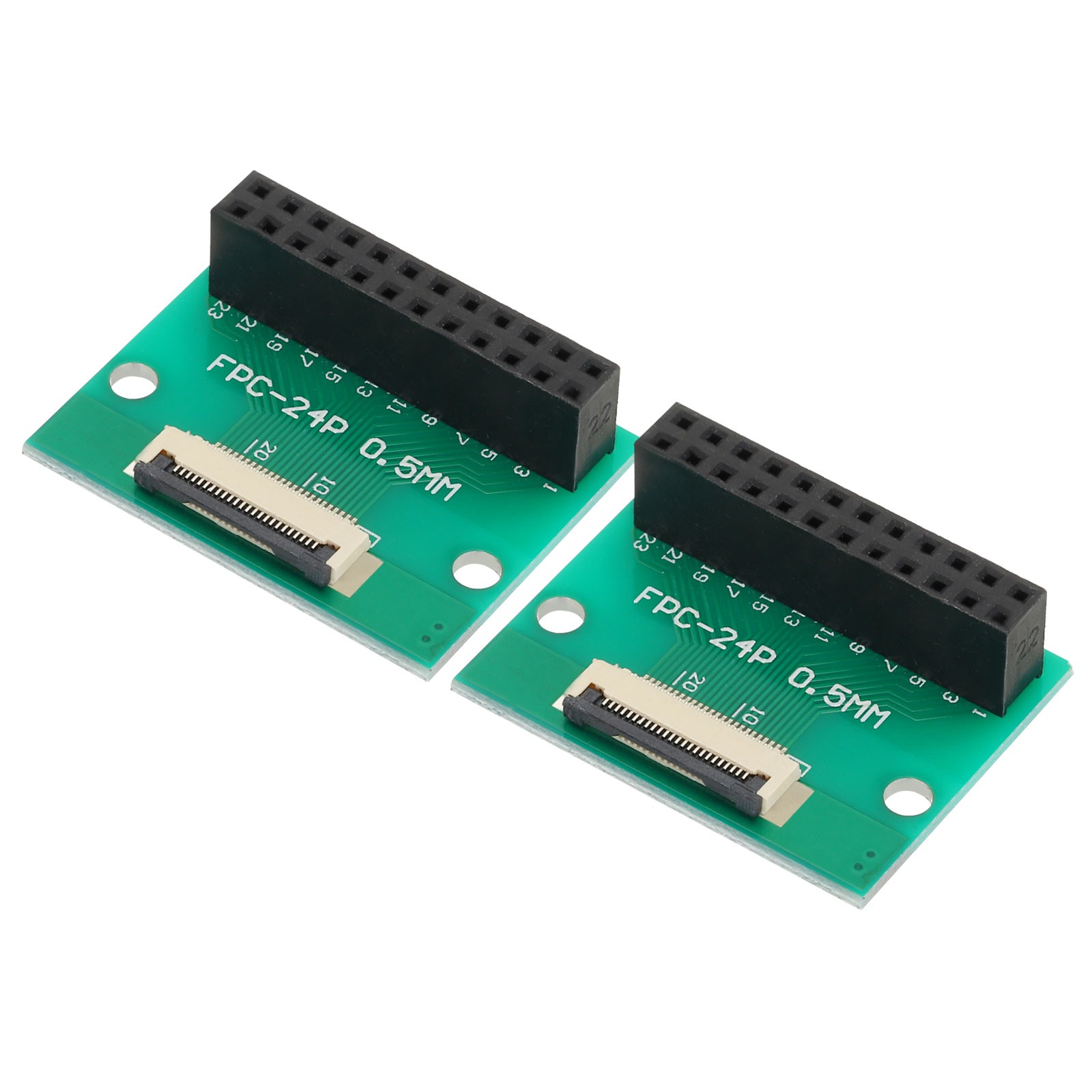

2pcs FFC FPC Connector Board 24 Pin Double Row Female Header Strip Adapter
The Zaplyte 24-pin adapter is the clear fit when the project calls for a double-row female header strip and a two-piece count. It uses the same stated pitch set as the rest of the comparison-0.5 mm on the FPC socket side, 1.0 mm on the back side, and 2.54 mm DIP-while its described board size is 34 x 26 mm. The key reason to select it is not its place in the price range but its distinct 24-pin female-header wording. Its concrete constraint is the USD 21.06 listed price, the highest here, alongside a format that differs from the male 30-pin and right-angle 10- and 4-pin boards.
2pcs FFC FPC Connector Board 10 Pin Double Row Right Angle Pin Header Adapter
For a 10-pin connection needing a double-row right-angle pin header, this Zaplyte two-piece adapter is the direct match. It is the lowest-listed-price option in the group at USD 13.37, and its description calls out a 33 x 20 mm board. Like the other boards, it is described as double-sided with a single flat-cable socket and a 2.54 mm DIP pitch. Choose it for the combination of 10 pins and right-angle header wording rather than as a substitute for a different connector count. Its limitation is exactly that narrow specification: it does not provide the 4-pin count of the other right-angle option, nor the female or 30-pin male formats.
2 x FFC FPC Connector Board 4 Pin Double Row Right Angle Pin Header Adapter
This uxcell option narrows the right-angle format to four pins and is listed as a two-piece set. The stated board size is 32 x 17 mm, making it the smallest of the dimensions stated for these four boards. It shares the same double-sided board construction, single flat-cable socket description, and stated 0.5 mm, 1.0 mm, and 2.54 mm pitch pattern found across the comparison. Pick it when four pins and a right-angle pin header are the central criteria. The tradeoff is its highly specific 4-pin configuration: it is not interchangeable by description with the 10-pin right-angle board or the 24- and 30-pin straight header styles.
Final recommendation by use case
Choose the 30 Pins Double Row Male Pin Header Strip Adapter for a 30-pin male-header requirement. Choose the 24 Pin Double Row Female Header Strip Adapter when 24 pins and a female header strip define the setup. Among the right-angle options, the 10 Pin Double Row Right Angle Pin Header Adapter suits a 10-pin requirement, while the 4 Pin Double Row Right Angle Pin Header Adapter is the focused pick for four pins. The practical decision is therefore simple: select the exact pin count first, then match male, female, or right-angle header wording.
