Choosing among FPV radios & batteries starts with identifying the job: do you need a handheld transmitter, an add-on for a DJI RC transmitter, or a LiPo battery matched to a specific voltage and connector? These four choices are not interchangeable. The fastest way to narrow them down is to match the product type first, then compare the condition, connector, voltage, capacity, and listed price.
Quick take
- For handheld control: The Jumper T20 is an ELRS 2.4GHz transmitter with full-size gimbals in a compact form, but it is used and has a reported right-gimbal issue.
- For a DJI RC accessory: The FPV Radio Signal Booster is a 2.4G module rated at 2W, with a 5V-15V operating range and specified RF connectors.
- For a 6S battery setup: The HRB XT90 pair provides two 4000mAh 6S LiPo batteries with 22.2V per pack.
- For a 4S battery setup: The HRB EC5 pair is specified at 5200mAh, 4S, and 14.8V per pack.
The listed-price spread is $60.26, but that range compares unlike hardware: the least expensive choice is a signal module, while the highest-priced choice is a two-battery 6S pack.
Listed-price comparison
| Product | Listed price | Price bar | Main role |
|---|---|---|---|
| Jumper T20 radio controller | USD 74.99 | ELRS transmitter | |
| FPV Radio Signal Booster Module | USD 33.73 | DJI RC signal accessory | |
| 2pcs HRB XT90 4000mAh 6S | USD 93.99 | 6S LiPo battery pair | |
| 2x HRB 5200mAh 4S EC5 | USD 79.99 | 4S LiPo battery pair |
Decision matrix: match the job first
- Need a handheld FPV transmitter: Choose the Jumper T20, but account for its used condition and the described roll-axis delay.
- Already have a DJI RC transmitter and need a signal module: The 2.4G booster is the relevant category, provided its 5V-15V power range and RP-SMA/SMA connectors suit the setup.
- Need a 6S pack with an XT90 connection: The HRB 4000mAh pair is the direct match, subject to the stated voltage, dimensions, and plug requirements.
- Need a 4S pack with an EC5 connection: The HRB 5200mAh pair is the relevant choice for a setup specified around 14.8V per pack and EC5.
Product notes

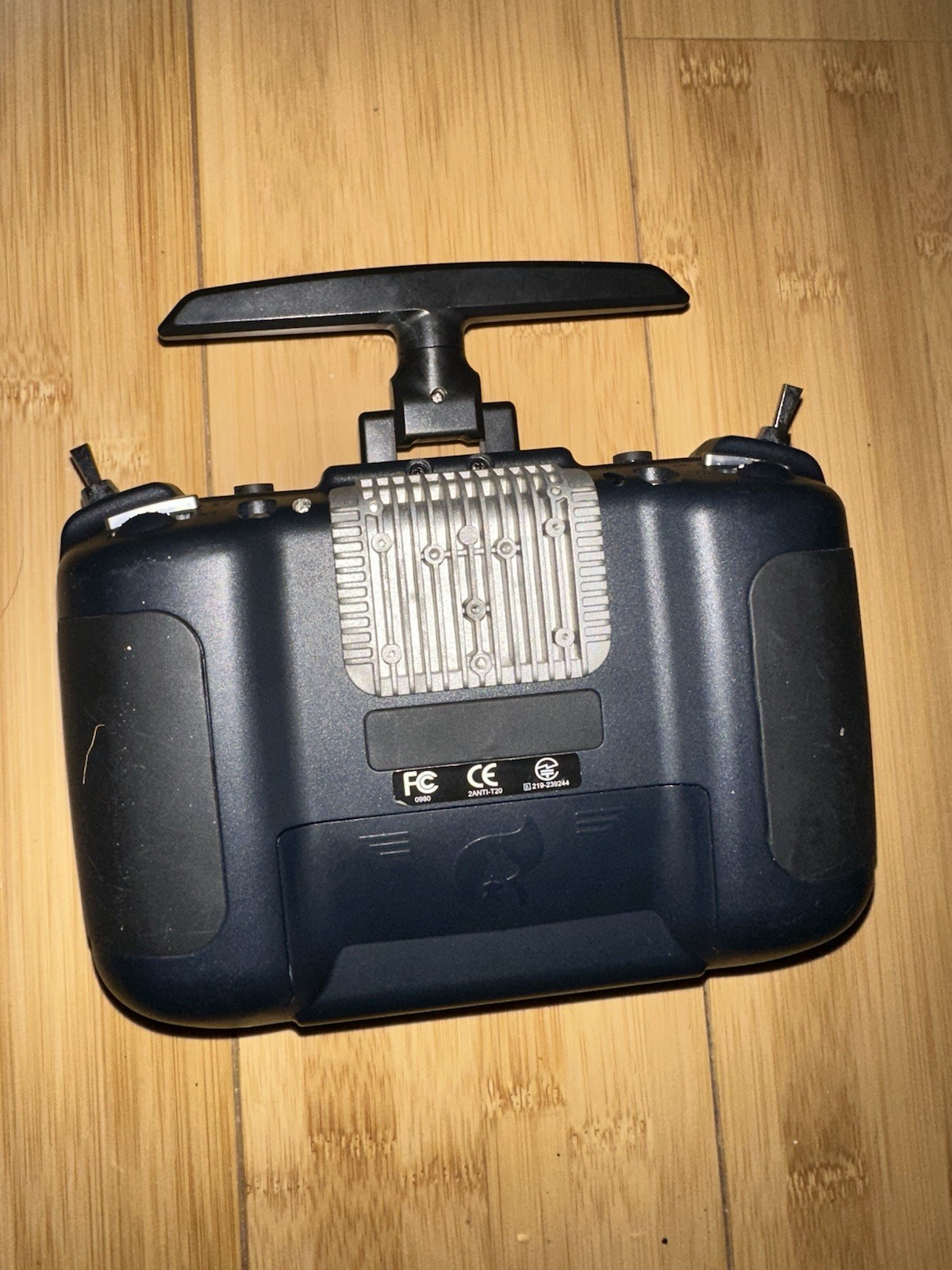

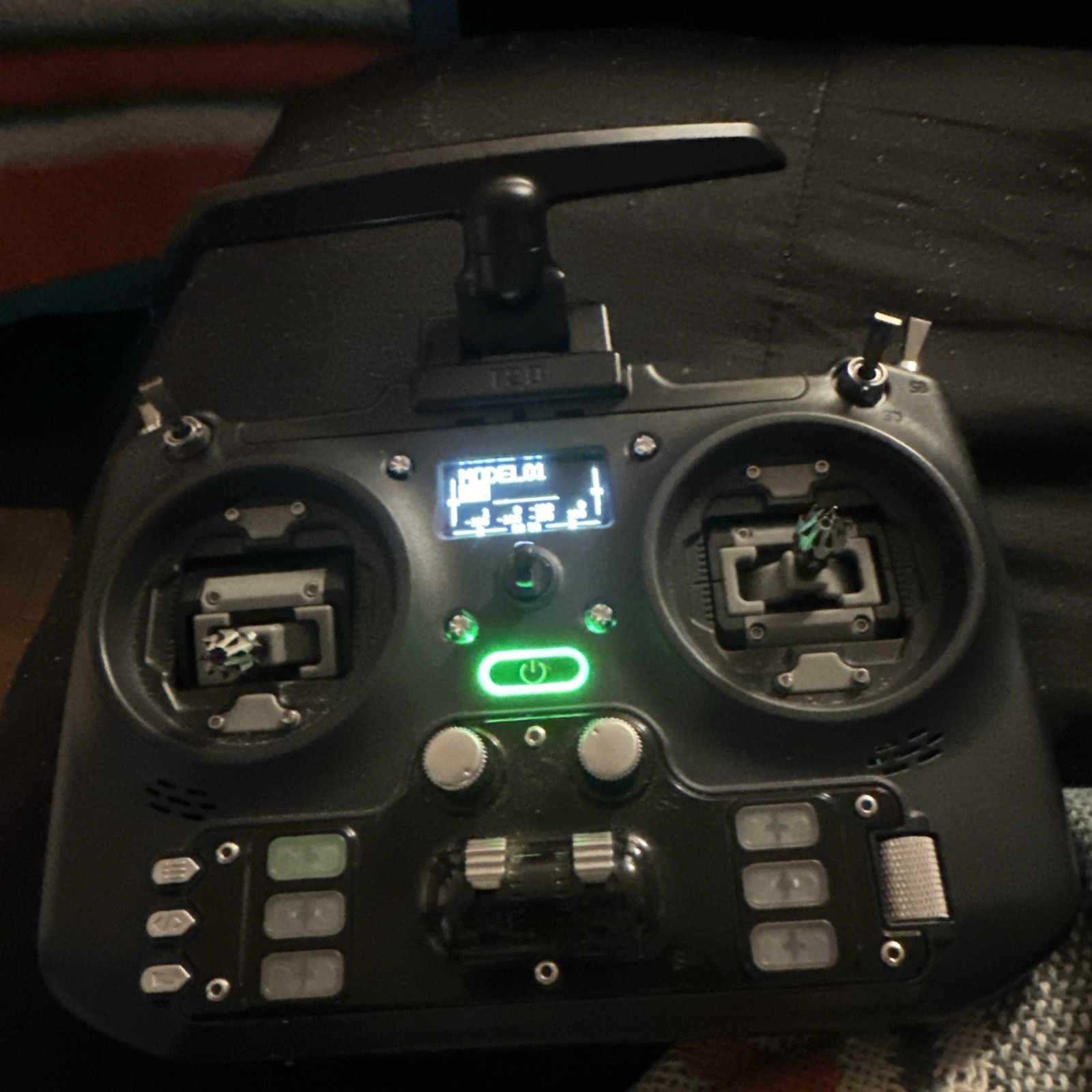

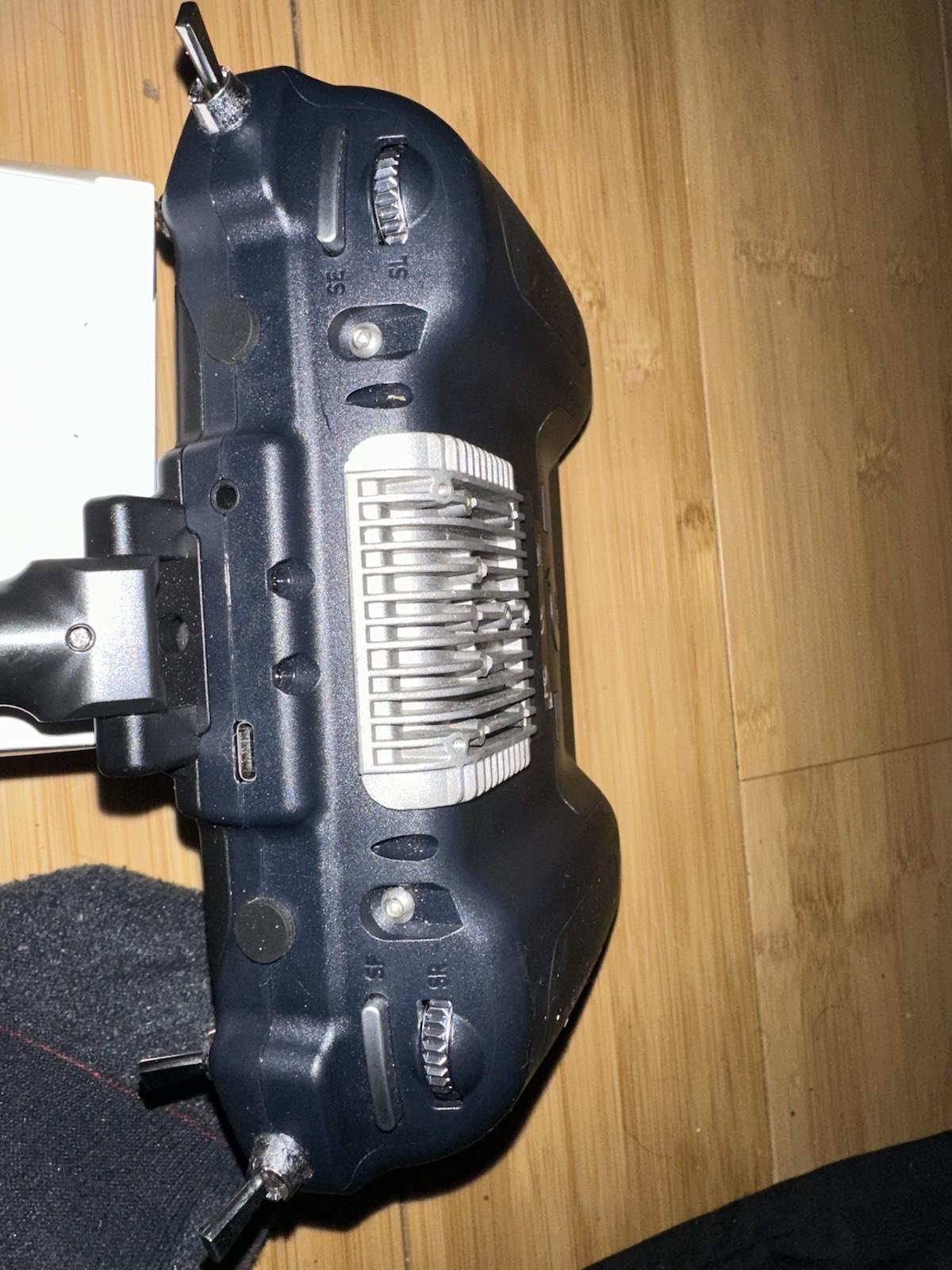

Jumper T20 Radio Controller Transmitter ELRS
Choose the Jumper T20 when the requirement is a handheld ELRS radio rather than a battery or add-on module. Its title specifies an RC FPV transmitter operating at 2.4GHz, while the description highlights full-size gimbals in a compact form. At USD 74.99, it occupies the middle of this comparison by price. The important limitation is condition: it is used, the right gimbal needs cleaning with alcohol or possibly replacement, and the roll axis has a slight delay in the analog output. That makes the T20 more suitable for a buyer prepared to address that specific repair issue than for someone seeking an uncomplicated transmitter purchase.

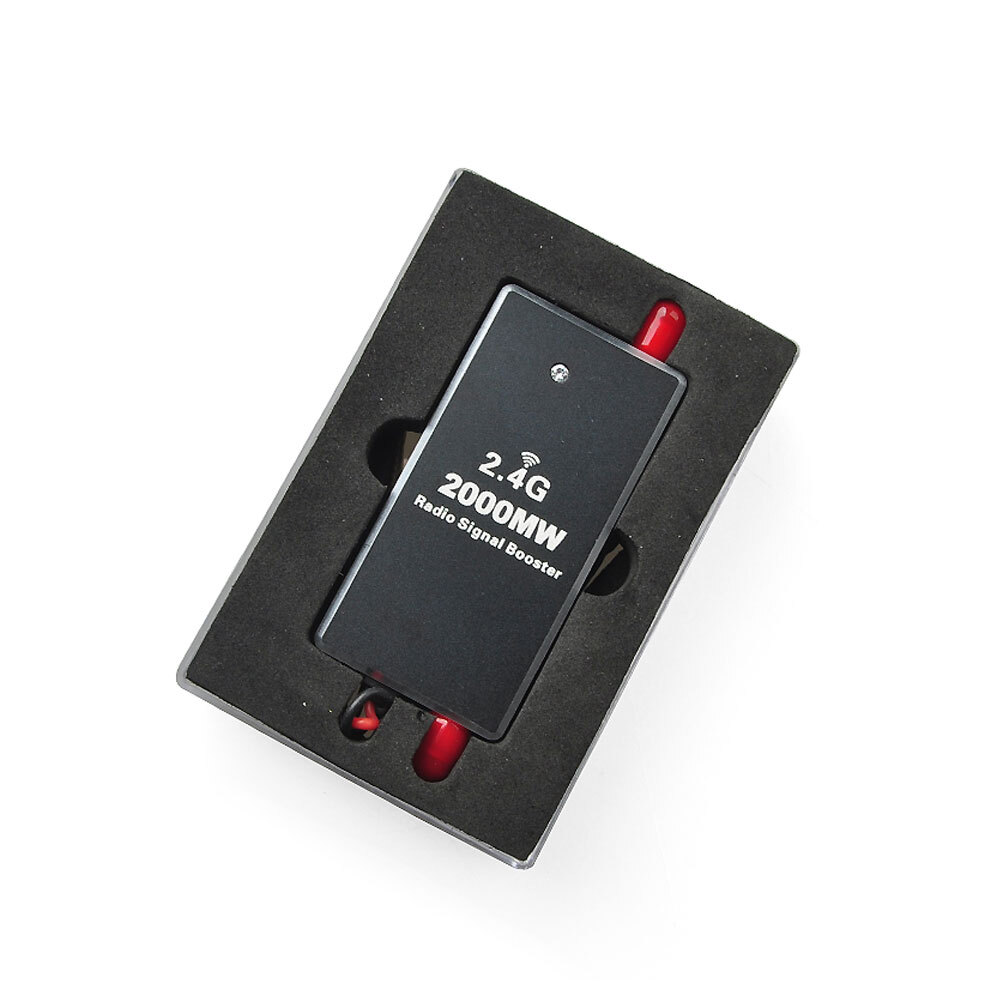

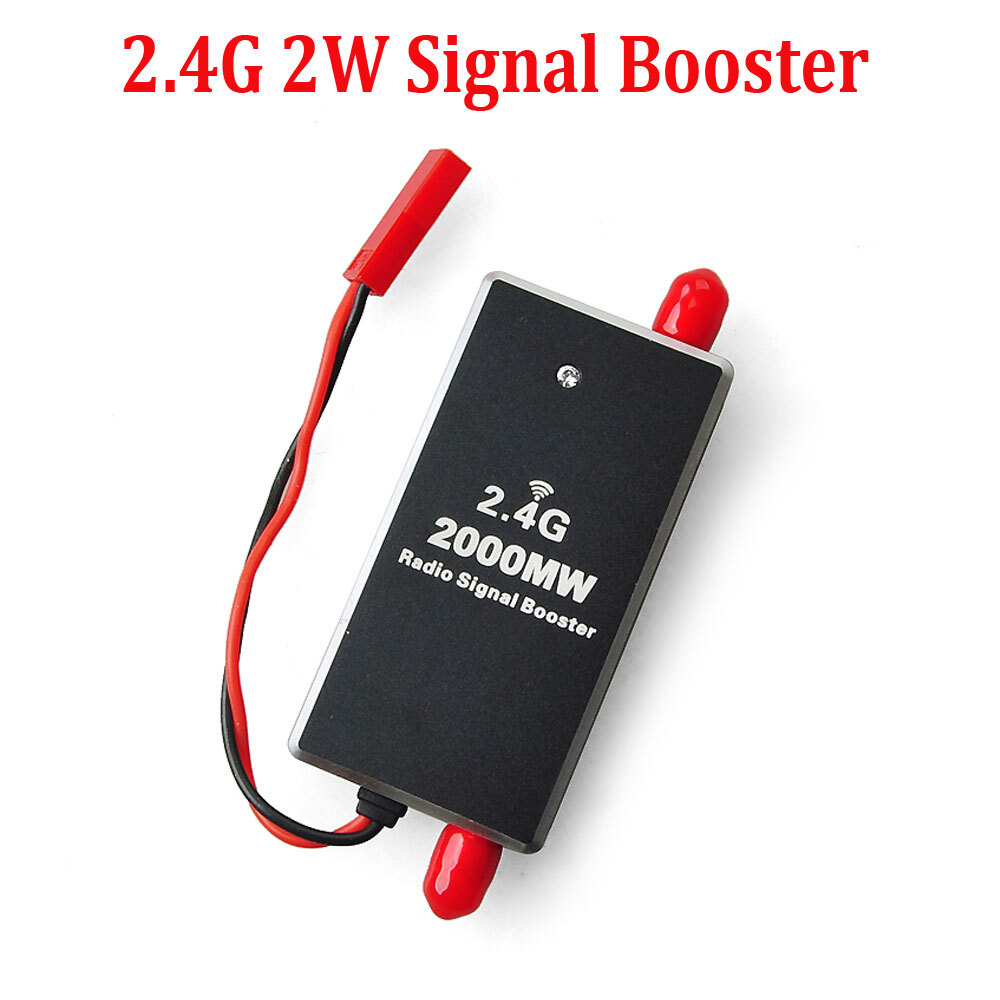

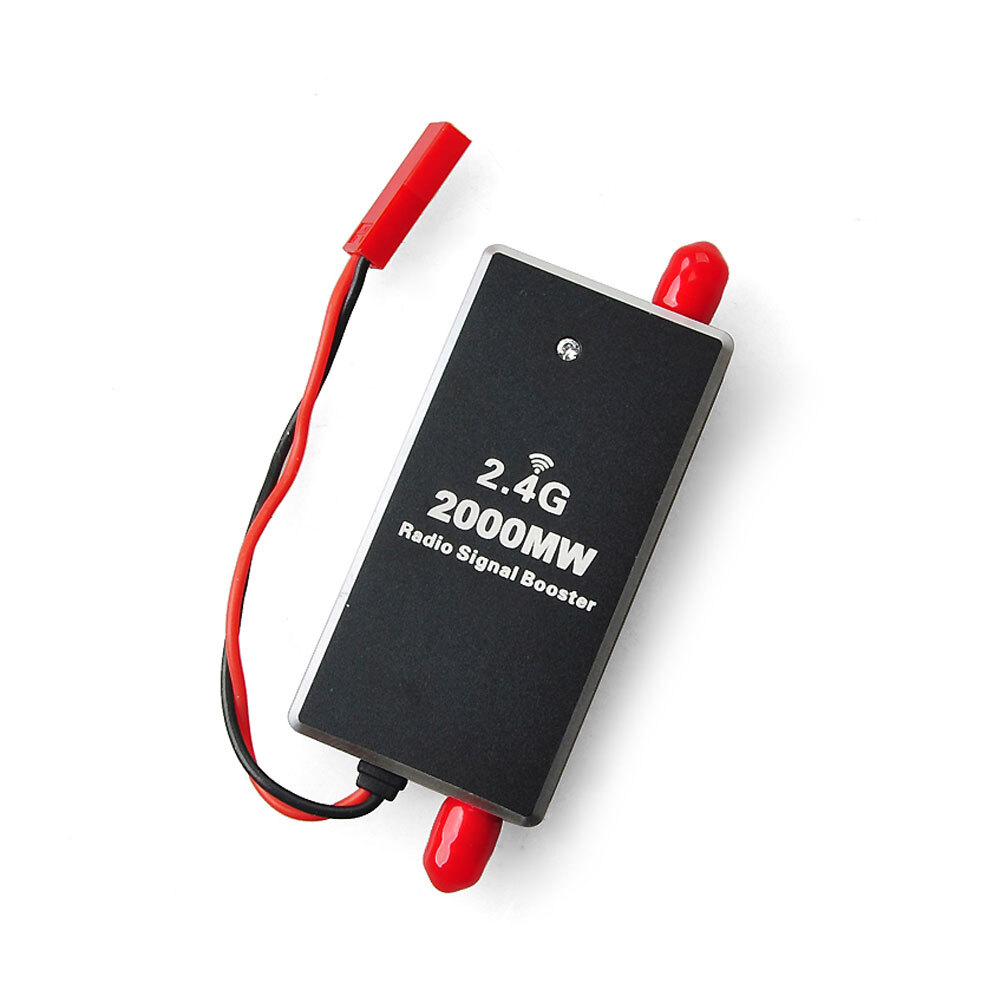

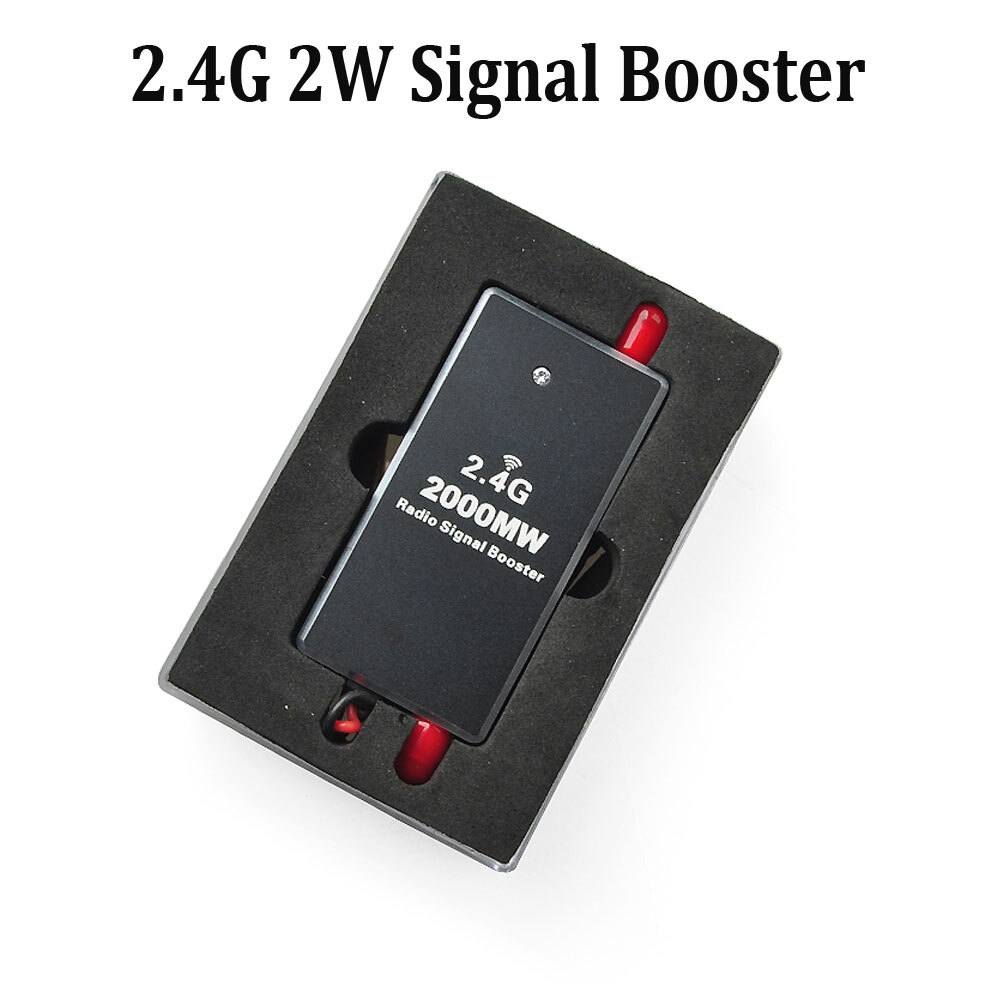

FPV Radio Signal Booster Amplifier Module
The FPV Radio Signal Booster Amplifier Module is the focused choice for a DJI RC transmitter setup. It is specified as a 2.4G, 2W, 2000mW module with 11dB ±1.5dB transmitter gain, a 5V-15V operating range, and RP-SMA female input plus SMA female output connectors. Its USD 33.73 price is the lowest in the comparison. The limitation is scope: it is an amplifier module, not a handheld radio controller, and the stated 62-by-32-by-10mm size excludes the antenna, mount, and power cable. Choose it when the DJI RC use case and the required power and connector arrangement already line up.
2pcs HRB XT90 4000mAh 6S LiPo Battery
For a setup calling for a 6S battery pair and an XT90 connection, the HRB package is the most direct match. It contains two 4000mAh LiPo batteries specified at 6S and 22.2V, with an XT90 female plug, 7-pin JST-XH balance connector, and 88.8Wh per pack. The listed price is USD 93.99, the highest of the four choices. The key limitation is matching: the description states that voltage, dimensions, and plug must match for the battery to fit. It also gives a suggested charge rate of 0.5C-1C and directs the user to read the use notice, so those instructions belong in the buying decision.
2x HRB 5200mAh 4S 14.8V EC5 LiPo Battery
The HRB 5200mAh pair suits a battery requirement built around 4S, 14.8V per pack, and an EC5 connector. The package contains two LiPo batteries, each specified with a 100C continuous discharge rate, a JST-XHR-5P balancer connector, and dimensions of 136 by 44 by 37mm. At USD 79.99, it is positioned between the transmitter and the 6S battery pair. Its limitation is the defined 4S and EC5 configuration: it is not the natural match for a setup requiring 6S or XT90. The stated 2C suggested charge rate and 482g pack weight also give the buyer practical specifications to compare with the intended RC vehicle or aircraft.
Final recommendation by use case
- Handheld FPV radio: Pick the Jumper T20 Radio Controller Transmitter ELRS if full-size gimbals and ELRS are the priority and the used-gimbal repair issue is acceptable.
- DJI RC signal accessory: Pick the FPV Radio Signal Booster Amplifier Module when the installation calls for the stated 2.4G module, 5V-15V input, and specified RF connectors.
- 6S battery pair: Pick the 2pcs HRB XT90 4000mAh 6S LiPo Battery when its 22.2V, XT90, dimensions, and balance connector align with the setup.
- 4S battery pair: Pick the 2x HRB 5200mAh 4S 14.8V EC5 LiPo Battery when the required configuration is 4S with EC5. The correct choice comes down to matching the hardware already in hand, not simply choosing the lowest listed price.
